GM CLIMBING Hitch Slack Tending Pulley Kit for Double Rope Climbing System Basic Unit of General Hauling - 30kN Swing Cheek Micro Pulley & Oval Locking Carabiner & 30in 8mm VT Prusik Kit | Micro Swing Cheek Pulley (Black, Bushing)
GM CLIMBING Hitch Slack Tending Pulley Kit for Double Rope Climbing System Basic Unit of General Hauling - 30kN Swing Cheek Micro Pulley & Oval Locking Carabiner & 30in 8mm VT Prusik
Slack Tending Pulley Kit is mainly used in the doubled- rope technique climbing system (ddrt), and also widely used as a flipline adjuster. In rigging or hauling, the kit often makes a pulley system with process capture. Kit contains: 1x Micro Pulley (according to your choice)1x 30in 8mm Friction Hitch VT Prusik1x 27kN Oval Twist Locking Carabiner 30kN Swing Cheek Micro Pulley Use with rope up to 0.472 in or 12 mm Dia. CE UIAA CERTIFIED Swing cheek makes the rope installation and removal much easier. Smooth rotation provides maximum mechanical advantage. Blue-Ball bearing: less contact area with axle, more efficient with very little friction in system, excellent for high speed use. Black-Bushing: larger contact area with axle, much less wear for longer service life, suitable for slow rigging with heavy weight. Light and compact micro pulley. You could use it in 100 applications, in hauling, dragging, tensioning system, in rescue, tree climbing, and etc. Mechanical advantage of pulley is an awesome thing we can have in our daily life. This micro pulley will help you get the maximum advantage with smooth rotation and easy use. ATTENTION NEVER a metal cable sliding over the ALUMINUM sheave of pulley! Read more Micro Pulley Technical Specs Breaking strength 30 kN / 6744 Lbs Net weight 2.6Oz / 74g Dimension 2.86 x 1.75 x 0.97 in / 72.7 x 44.5 x 24.7 mm Max. Rope Dia. 0.47 in / 12 mm Sheave Dia. 1.26 in / 32 mm Sheave Material Aluminum Alloy. Never slide steel cable over the pulley with aluminum sheave! Sheave bearing Ball Bearing (Blue) / Bushing (Black) Certificate(s) CE 1019 EN 12278:2007; UIAA 127: Safety Label No. CHN 17-4761 8mm (5/16in) Pre-Sewn Prusik Cord Length: 76cm / 30inch (end to end) Diameter: 8mm / 5/16 inch Material: Sheath-50% Kevlar & 50% Polyester; Core-Polyester Cord MBS: 25kN / 5620lbf Basket MBS: 29kN / 6500lbf Heat Resistance! 50% Kevlar Fiber is mingled during sheath braiding, adding durability (cord rating to 25kN) and excellent heat resistance for your friction hitch.With heat shrink tube over solidly sewn stitching part, the prusik loop is safer and better than prusik cord with knots.High resistance to moisture, low stretch and high strength! All is due to its all high tenacity polyester material. One more advantage adds to its excellent outdoor environment adaption. Read more 27kN Oval Twist Locking Carabiner Material: aircraft-grade aluminium alloy (anodized) Breaking Strength: main axis: 27kN - minor axis: 9 kN - open gate: 7 kN Gate opening (d): 21 mm Net weight: 80g / 2.82Oz Length: 110mm Width: 60mm Certification(s): CE 1019 EN 12275 / UIAA Read more Hitch Tending Kit with 20kN Pulley Hitch Tending Kit with 30kN Pulley 5:1 Mechanical Advantage Pulley Kit 5:1 Mechanical Advantage Pulley Kit Pulley type 20kN Micro Pursik Minding Pulley 30kN Micro Swing Cheek Pulley 40kN Micro Double Pulley 32kN Large Rescue Pulley Rope compatibility 1/2in or 13 mm 0.47in or 12 mm 0.472 in or 12 mm 5/8 in or 16mm Carabiner incl. ✓ ✓ ✓ ✓ Prusik incl. ✓ ✓ ✓ ✓ Sling incl. Not Included Not Included ✓ Not Included
Product Information

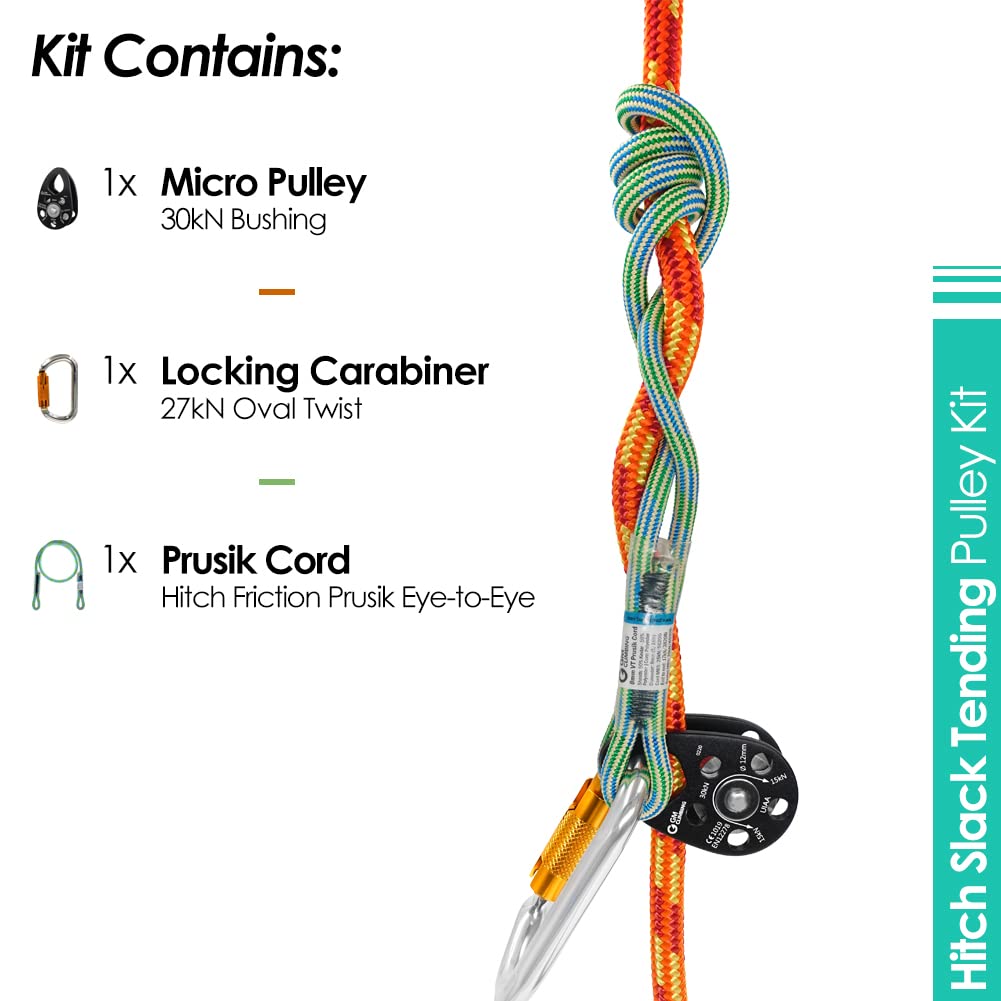

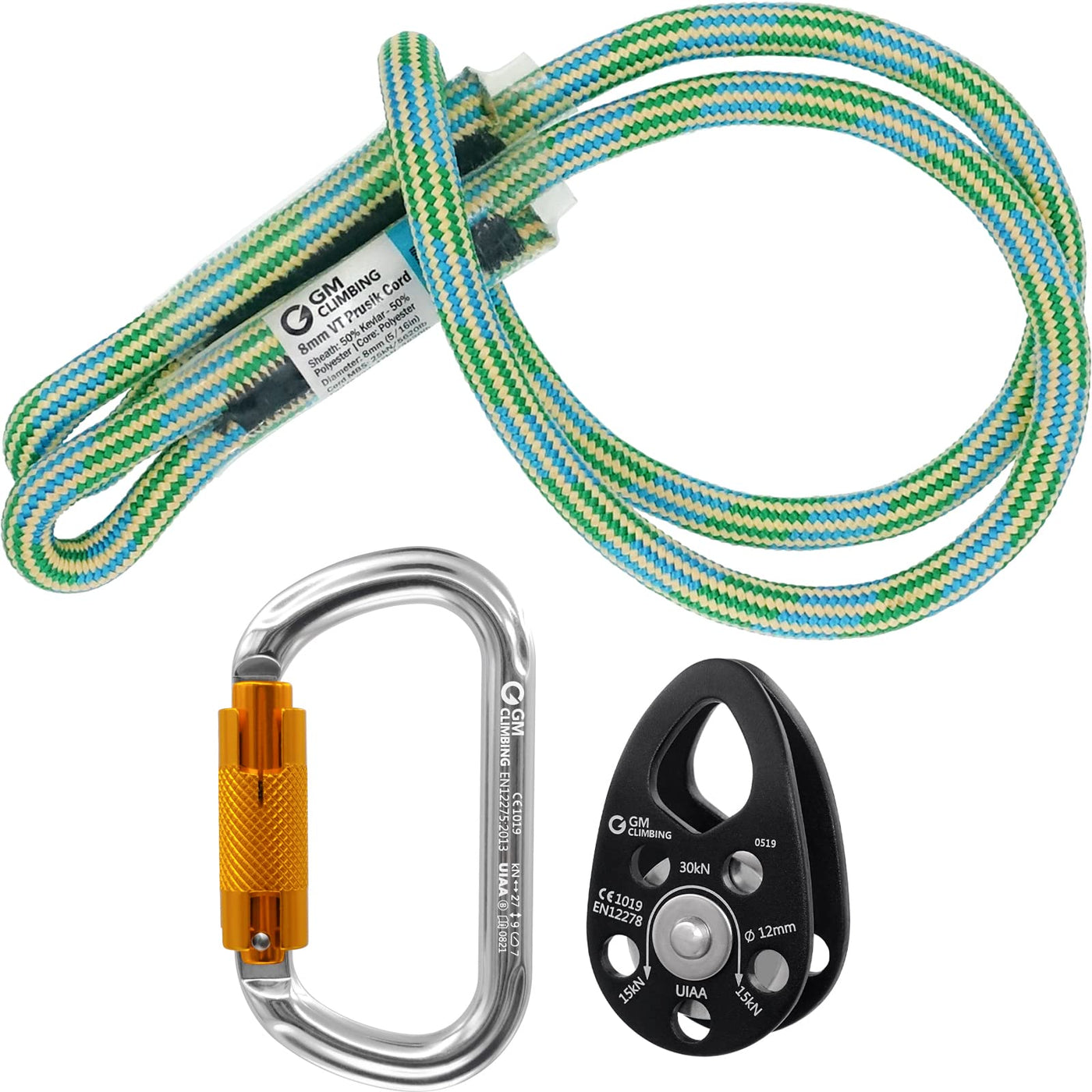

- Slack Tending Pulley Kit from GM CLIMBING, which contains: 1x 30in 8mm Friction Hitch VT Prusik, 1x 27kN Oval Twist Locking Carabiner, 1x 30kN Swing Cheek Micro Pulley.
- Mainly used as core part of doubled-rope technique climbing system (ddrt), also widely use as flipline adjuster. For general pulley system, such kit can also made itself a pulley system with process capture.

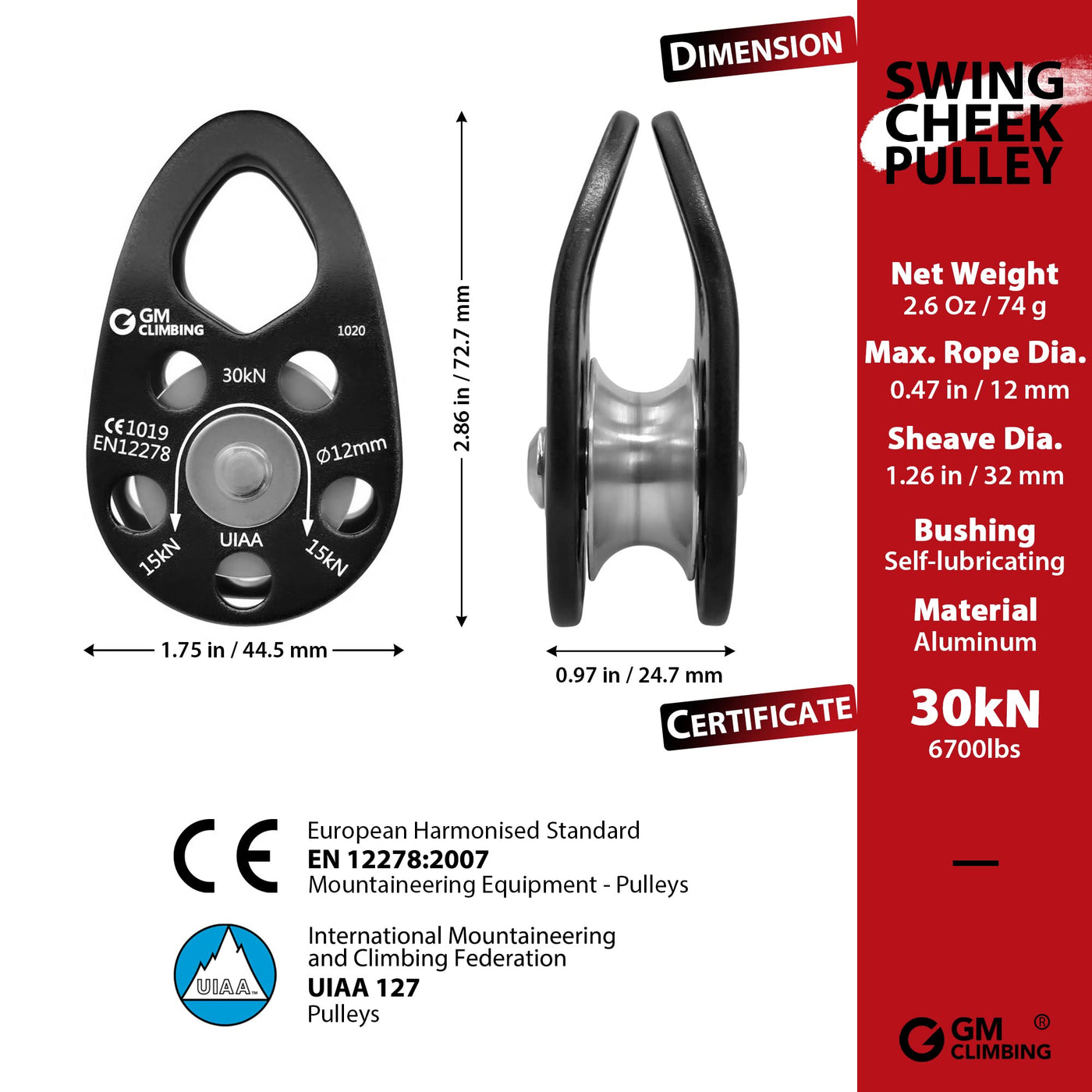

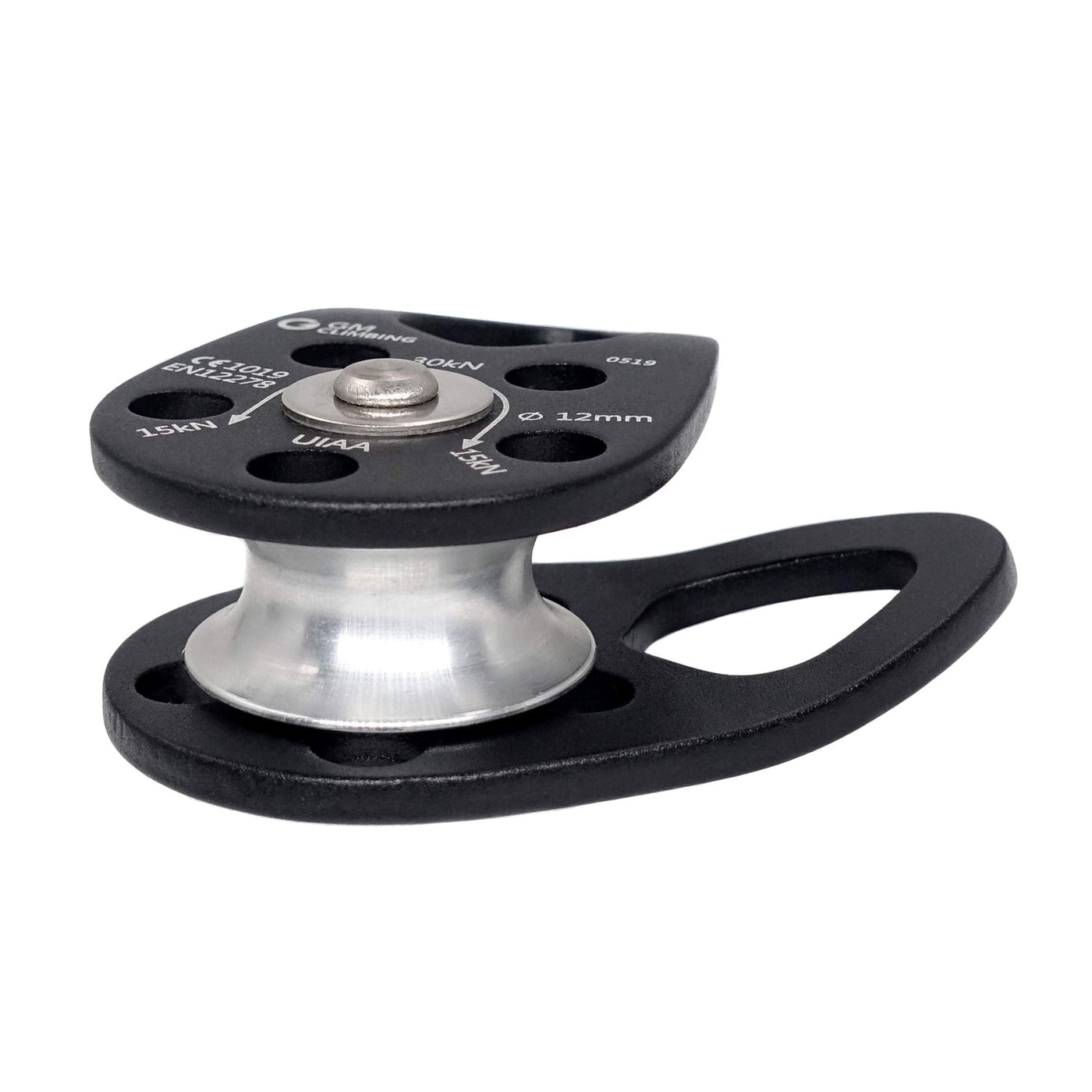

- Ball bearing or bushing 30kN Swing Cheek Micro Pulley are chosen for kit. It's easier to install or remove rope from pulley due to swing plates, much facilitating whole set-up process.

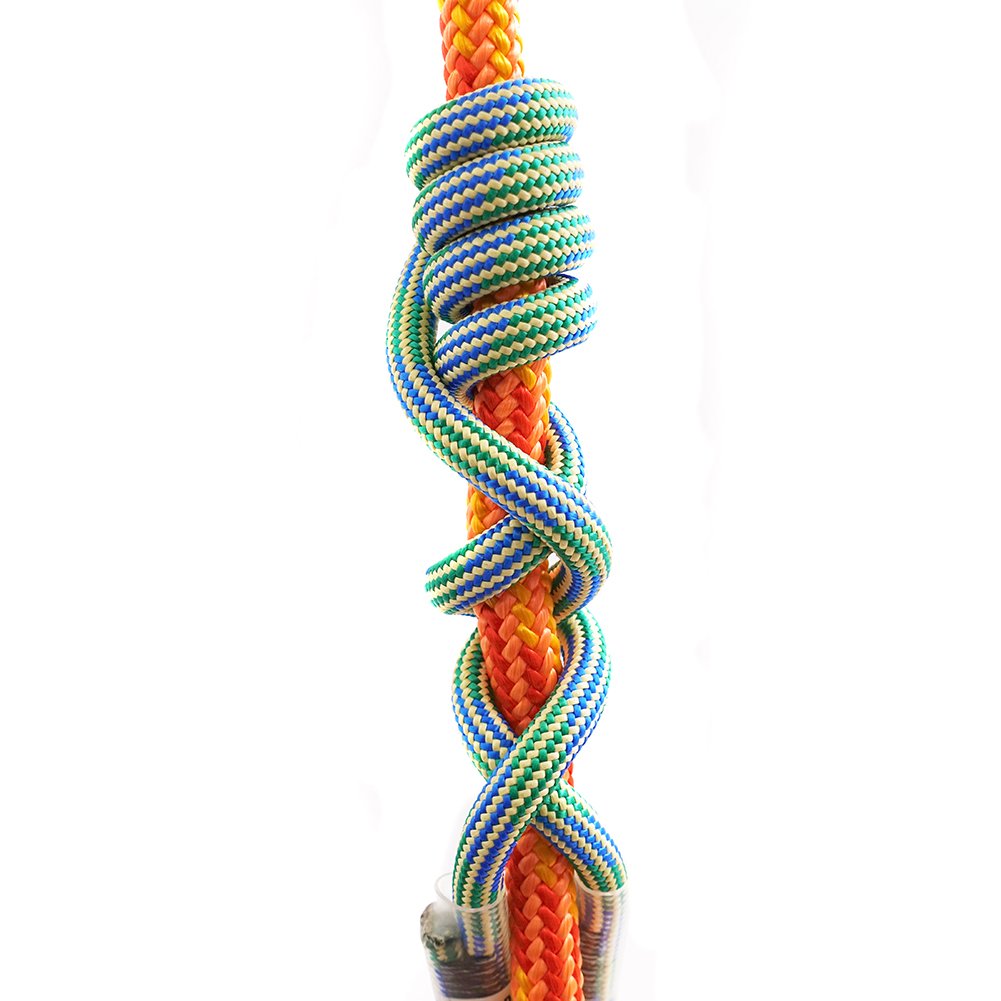

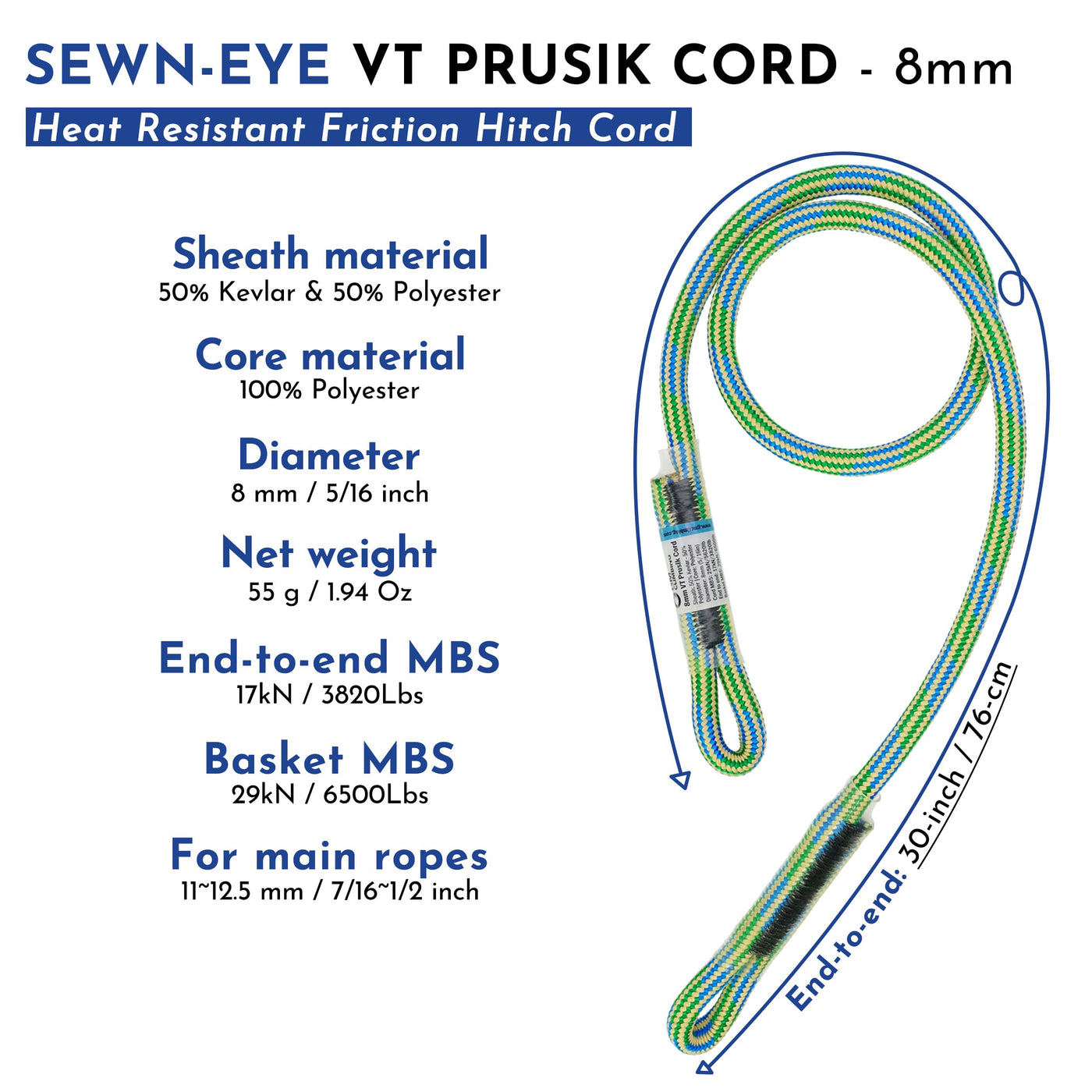

- VT Prsuik with Heat Resistance! 50% Kevlar Fiber is mingled during sheath braiding, adding durability (cord rating to 25kN) and excellent heat resistance for your friction hitch.

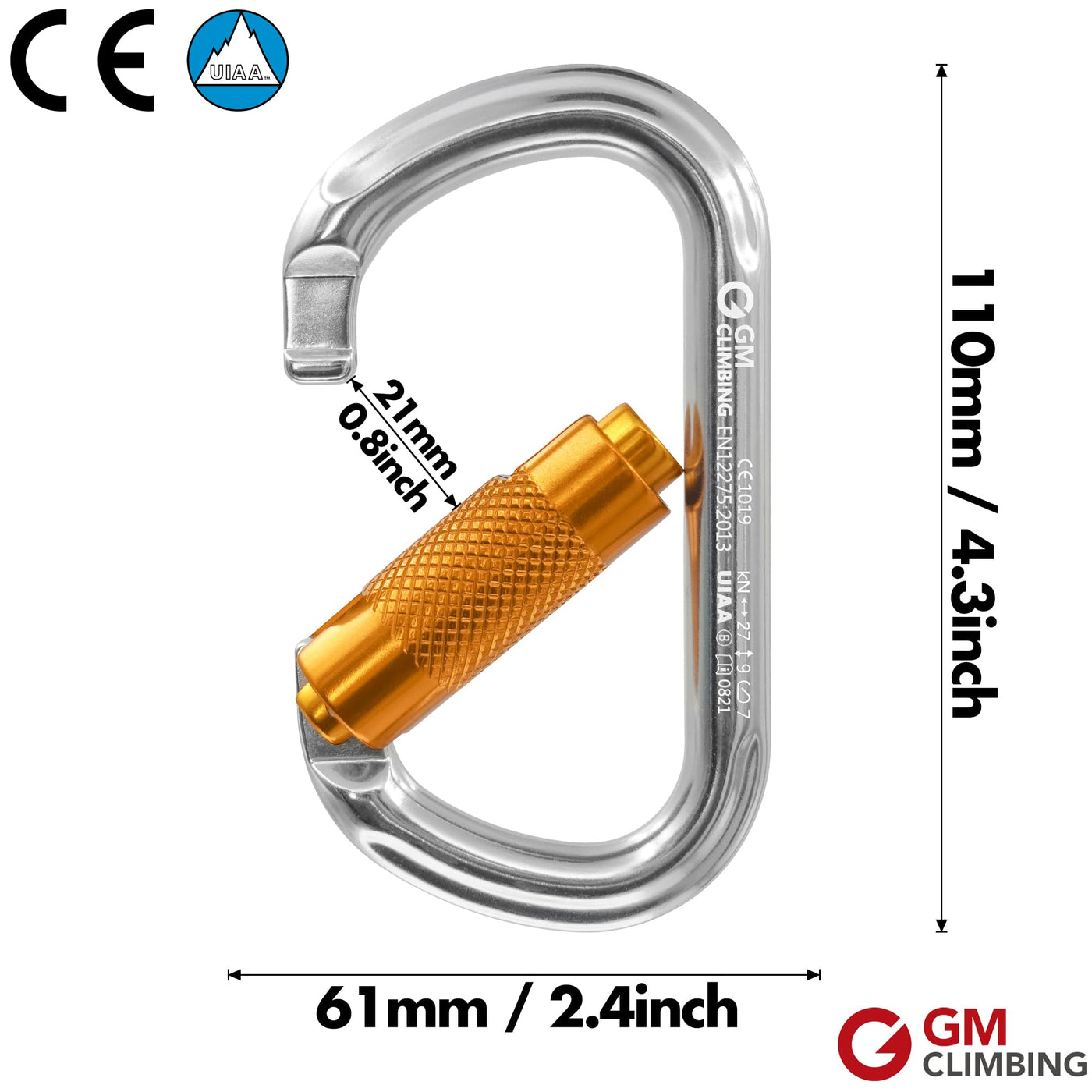

- It's always a good idea to have an oval locking carabiner to use with pulleys, for better balance, also for safer operation.
